The Win Wing 2 Gravel fits practically any gravel bike, protecting the rider in even the worst conditions.
No matter the terrain, on-road or off, the Win Wing won't rattle or jam, and with only 72g, you won't even notice it's there. This mudguard provides full backside rider protection from the knee and up, attaching in seconds to every bike with no tools required.
The key to understanding how the Win Wing works lies in physics: water and mud leave the wheel in a straight line from the tangential point of release. By shielding only the upper rear quarter of the wheel, the Win Wing eliminates spray from reaching the critical areas of the rider with a minimum of material. For the Tangential Coverage to work properly, the mudguard needs to be installed very close to the wheel. Aim for 5-10 mm tire clearance for maximum coverage. Just as important as a tight fit is the angle of the blade. There are three different settings to compensate for the angle of your seat stays. Choose the one that allows a horizontal or a tail-up position. Avoid a tail-down angle as this will reduce the efficiency of the fender. The straps are made from ultra-tough TPU and should be pulled as tight as you can comfortably do by hand. If you experience that the mudguard is not stable, try to use the next hole in the strap.
The Win Wing is designed to be as kind to your bike as possible with soft rubber feet that gently hug your frame. However, anything that is strapped to your bike for a longer period of time will leave marks. If you are very keen on maintaining that new bike look, please remember to install protective tape where your Win Wing is attached. As sturdy as it is, the design of the Win-Wing allows it to flex in case of an accident and it's constructed to not jam in case of large chunks of nature get stuck to your wheel. If you like to keep it attached to your bike permanently, the Win-Wing can be secured to your bike with a standard zip tie, through a designated slot, making it easier to resist for people with sticky fingers. Thanks to its sophisticated simplicity and careful choice of materials, the Win-Wing is virtually indestructible. With only four components, there is not much that can go wrong. The glassfiber reinforced wishbone holder is both flexible and tough and the rubber straps are virtually indestructible.

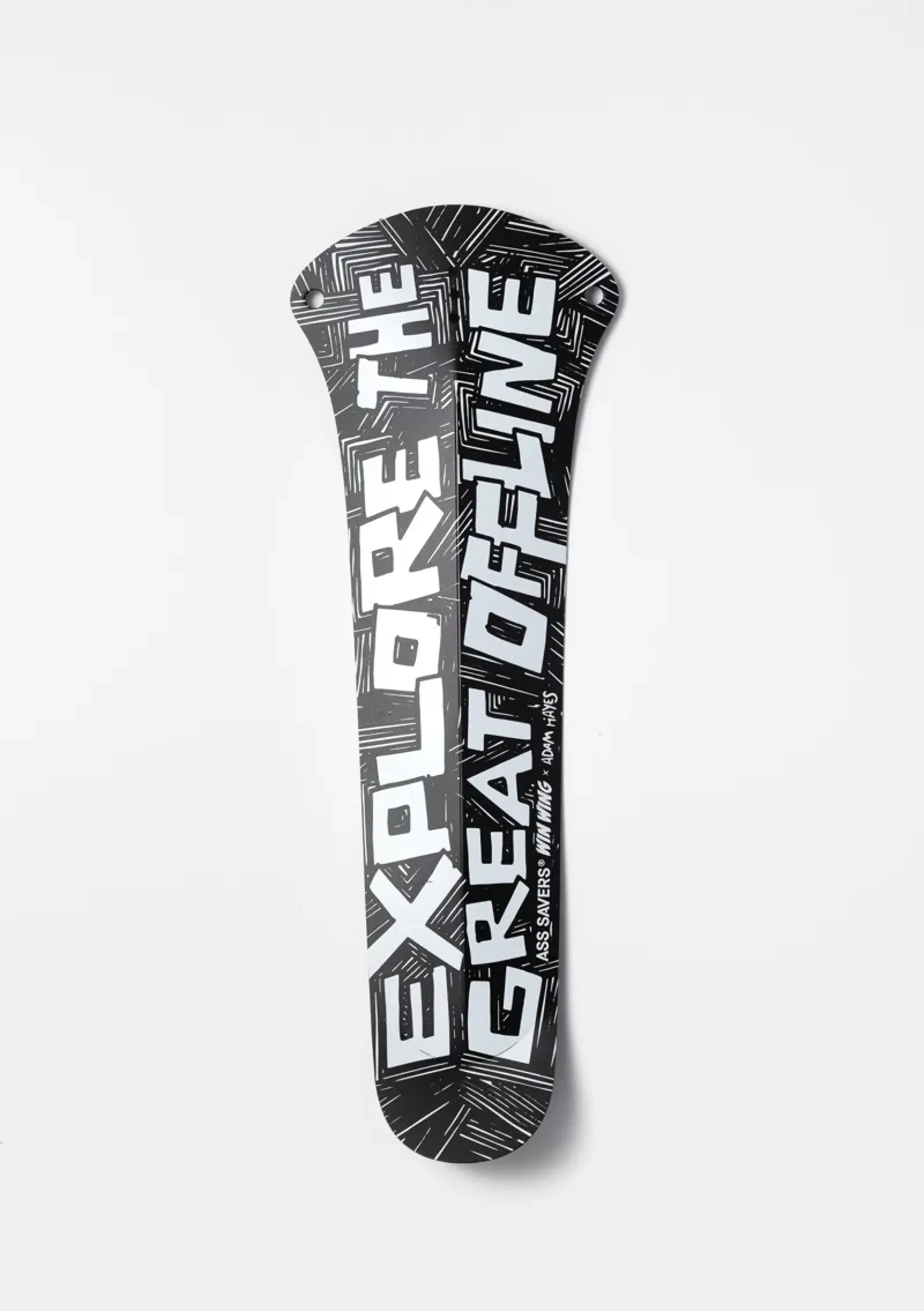

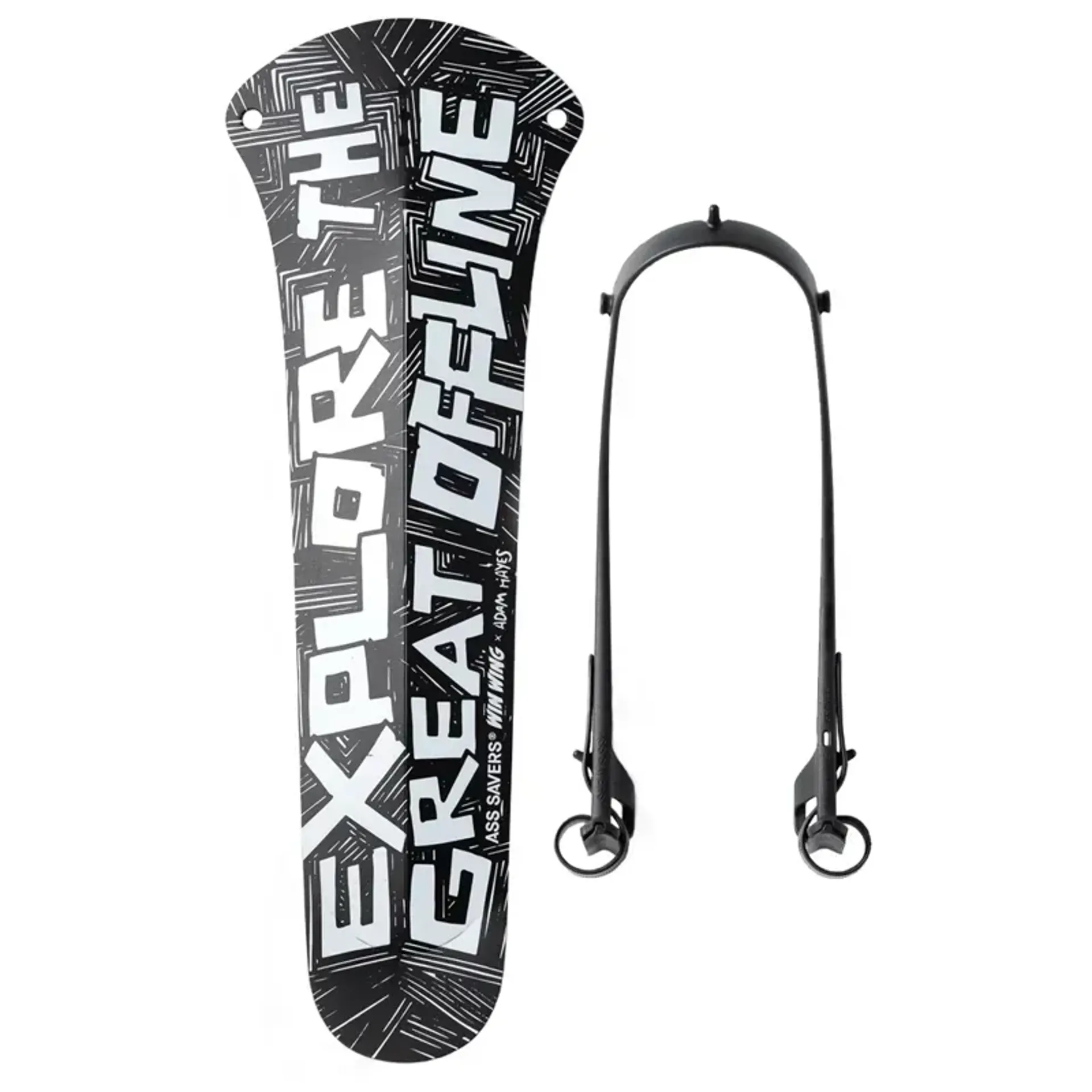

The secret to transforming a flat piece of plastic into a functioning mudguard lies in the pre-folding prior to use. All the scoring lines have been carefully engineered to achieve locking mechanisms, self-centering abilities, spring loading and material endurance. Please take the time to properly read the instructions/see the instruction video to ensure the best performance. The black blade is made from 80% recycled PP and the Win Wing has been designed for efficient shipping and easy recycling. The wishbone and blade can be purchased separately, making repairing and upgrading convenient. The Win-Wing is 100% Made in Sweden in ISO 14001 certified factories.
Features:
- Measures 375 x 85 mm
- Suitable for tire widths up to 60 mm
- Weight: 72 g
- Blade material: 0.9 mm PP (Polypropylene)
- Wishbone holder material: Glassfiber reinforced PA (Polyamid or Nylon)
- Strap material: TPU (thermoplastic polyurethane)
- Reinforced patent pending wishbone technology
- Includes frame protection stickers
